Expr

Rules

1. program
2. header
3. block
4. declaration
5. varList
6. varId
7. typeId
8. functionId
9. function
10. functionDefinition
11. functionCall
12. identifiers
13. parameters
14. stmt
15. stmtList
16. declareStmt
17. assignmentStmt
18. printStmt
19. ifStrStmt
20. ifStmt
21. forStmt
22. formatString
23. printArg
24. variable
25. expr
26. mulDivOp
27. addSubOp
28. relOp
29. signedNumber
30. sign
31. number
32. boolType
33. PROGRAM
34. BEGIN
35. END
36. PRINTF
37. IF
38. ELSE
39. FOR
40. RETURN
41. INTEGER
42. DECIMAL
43. BOOL
44. MUL_OP
45. DIV_OP
46. ADD_OP
47. SUB_OP
48. EQ_OP
49. NE_OP
50. LT_OP
51. LE_OP
52. GT_OP
53. GE_OP
54. NEWLINE
55. WS
56. QUOTE
57. STRING
58. STRING_CHAR
59. IDENTIFIER

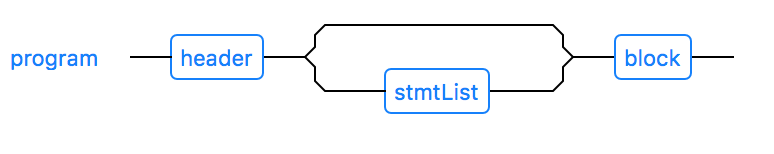

• program Top

  Text notation:

  program : header (stmtList)? block ;

  Visual notation:

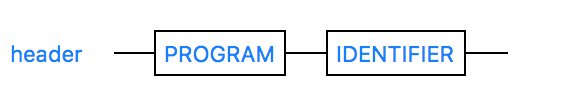

• header Top

  Text notation:

  header : PROGRAM IDENTIFIER ;

  Visual notation:

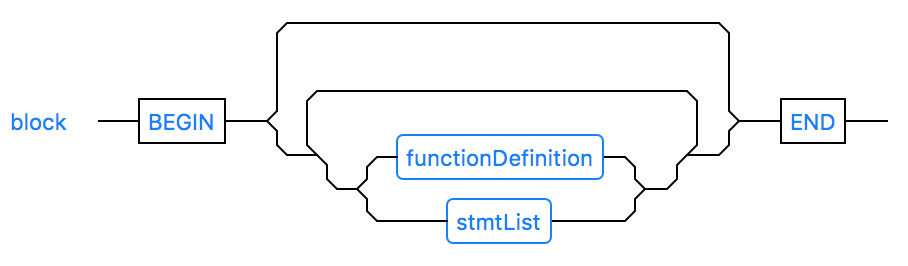

• block Top

  Text notation:

  block : BEGIN (functionDefinition | stmtList)* END ;

  Visual notation:

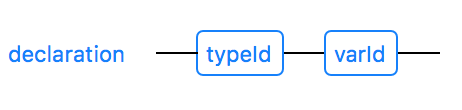

• declaration Top

  Text notation:

  declaration : typeId varId # variableDeclaration ;

  Visual notation:

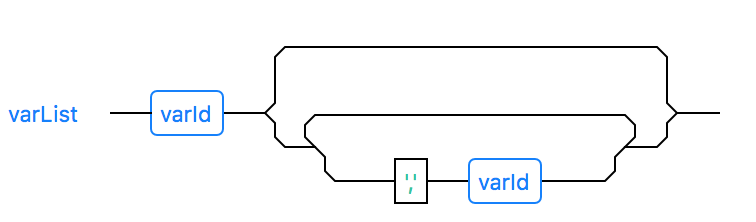

• varList Top

  Text notation:

  varList : varId ( ',' varId )* ;

  Visual notation:

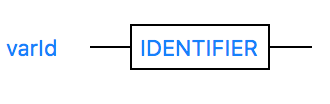

• varId Top

  Text notation:

  varId : IDENTIFIER ;

  Visual notation:



• typeId Top

  Text notation:

  typeId : IDENTIFIER ;

  Visual notation:



• functionId Top

  Text notation:

  functionId : IDENTIFIER ;

  Visual notation:



• function Top

  Text notation:

  function : IDENTIFIER ;

  Visual notation:

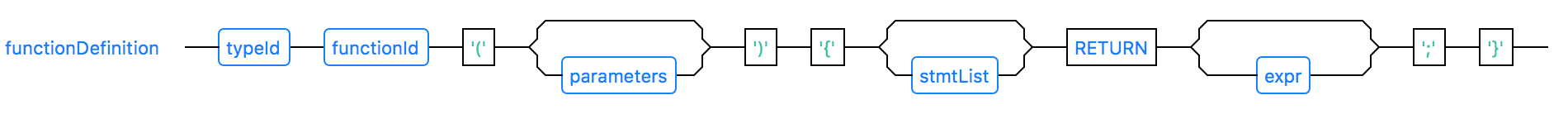

• functionDefinition Top

  Text notation:

  functionDefinition : typeId functionId '(' parameters? ')' '{' stmtList? RETURN (expr)? ';' '}' ;

  Visual notation:

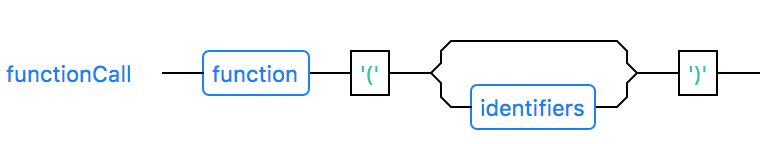

• functionCall Top

  Text notation:

  functionCall : function '(' identifiers? ')' ;

  Visual notation:

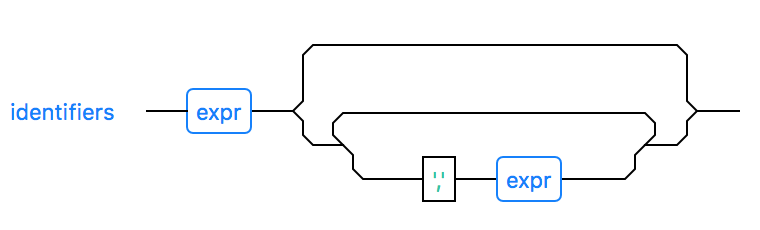

• identifiers Top

  Text notation:

  identifiers : expr (',' expr)* ;

  Visual notation:

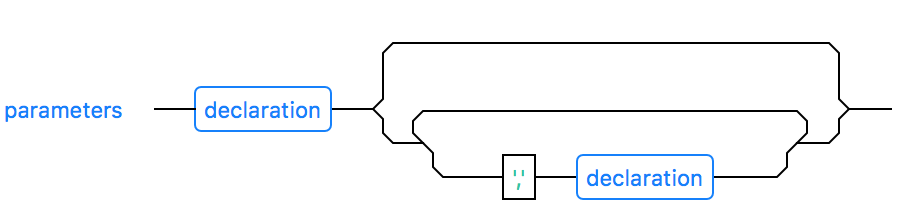

• parameters Top

  Text notation:

  parameters : declaration (',' declaration)* ;

  Visual notation:

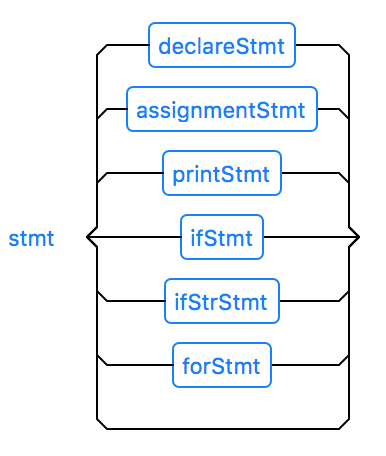

• stmt Top

  Text notation:

  stmt : declareStmt | assignmentStmt | printStmt | ifStmt | ifStrStmt | forStmt | ;

  Visual notation:

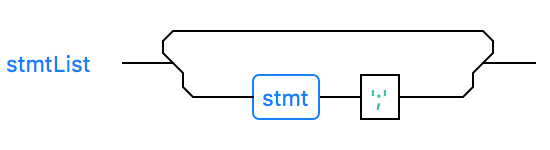

• stmtList Top

  Text notation:

  stmtList : (stmt ';')+ ;

  Visual notation:



• declareStmt Top

  Text notation:

  declareStmt : typeId varList ;

  Visual notation:



• assignmentStmt Top

  Text notation:

  assignmentStmt : variable '=' expr ;

  Visual notation:

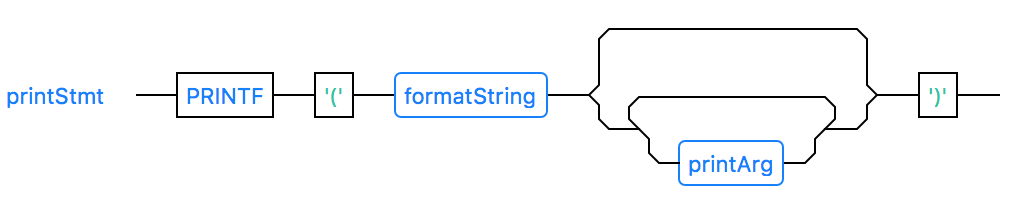

• printStmt Top

  Text notation:

  printStmt : PRINTF '(' formatString printArg* ')' ;

  Visual notation:

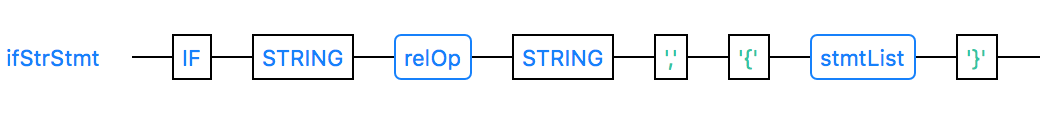

• ifStrStmt Top

  Text notation:

  ifStrStmt : IF STRING relOp STRING ',' '{' stmtList '}' ;

  Visual notation:

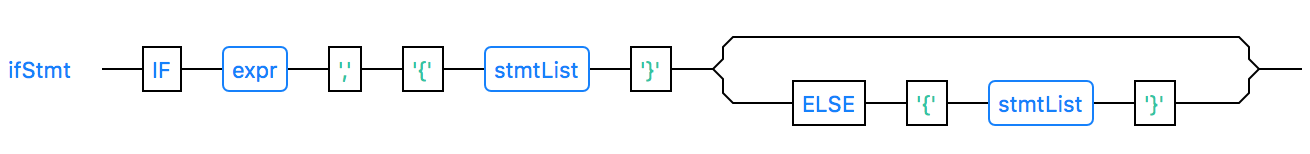

• ifStmt Top

  Text notation:

  ifStmt : IF expr ',' '{' stmtList '}' ( ELSE '{' stmtList '}')? ;

  Visual notation:

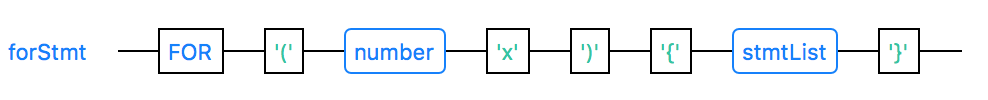

• forStmt Top

  Text notation:

  forStmt : FOR '(' number 'x' ')' '{' stmtList '}' ;

  Visual notation:



• formatString Top

  Text notation:

  formatString : STRING ;

  Visual notation:



• printArg Top

  Text notation:

  printArg : ',' expr ;

  Visual notation:



• variable Top

  Text notation:

  variable : IDENTIFIER ;

  Visual notation:

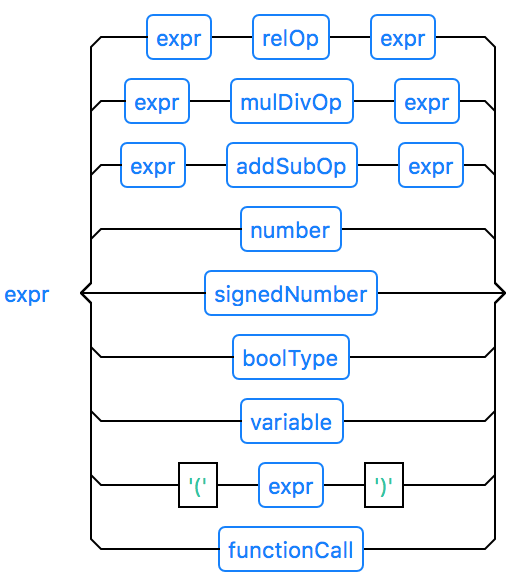

• expr Top

  Text notation:

  expr : expr relOp expr # relExpr | expr mulDivOp expr # mulDivExpr | expr addSubOp expr # addSubExpr | number # unsignedNumberExpr | signedNumber # signedNumberExpr | boolType # boolExpr | variable # variableExpr | '(' expr ')' # parenExpr | functionCall # funcCallExpr ;

  Visual notation:

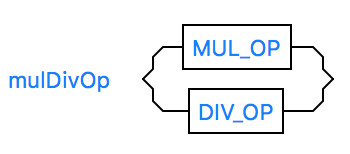

• mulDivOp Top

  Text notation:

  mulDivOp : MUL_OP | DIV_OP ;

  Visual notation:

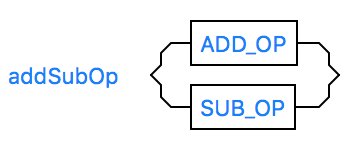

• addSubOp Top

  Text notation:

  addSubOp : ADD_OP | SUB_OP ;

  Visual notation:

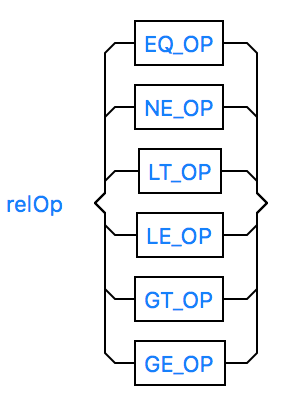

• relOp Top

  Text notation:

  relOp : EQ_OP | NE_OP | LT_OP | LE_OP | GT_OP | GE_OP ;

  Visual notation:



• signedNumber Top

  Text notation:

  signedNumber : sign number ;

  Visual notation:



• sign Top

  Text notation:

  sign : ADD_OP | SUB_OP ;

  Visual notation:

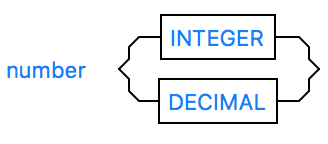

• number Top

  Text notation:

  number : INTEGER # integerConst | DECIMAL # floatConst ;

  Visual notation:



• boolType Top

  Text notation:

  boolType : BOOL # boolConst ;

  Visual notation:



• PROGRAM Top

  Text notation:

  PROGRAM : 'start' ;

  Visual notation:



• BEGIN Top

  Text notation:

  BEGIN : '{.' ;

  Visual notation:



• END Top

  Text notation:

  END : '.}' ;

  Visual notation:



• PRINTF Top

  Text notation:

  PRINTF : 'print' ;

  Visual notation:



• IF Top

  Text notation:

  IF : 'if' ;

  Visual notation:



• ELSE Top

  Text notation:

  ELSE : 'else' ;

  Visual notation:



• FOR Top

  Text notation:

  FOR : 'for' ;

  Visual notation:



• RETURN Top

  Text notation:

  RETURN : 'return' ;

  Visual notation:

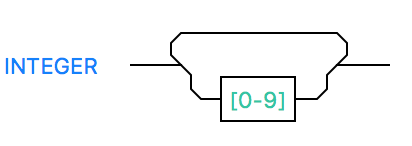

• INTEGER Top

  Text notation:

  INTEGER : [0-9]+ ;

  Visual notation:

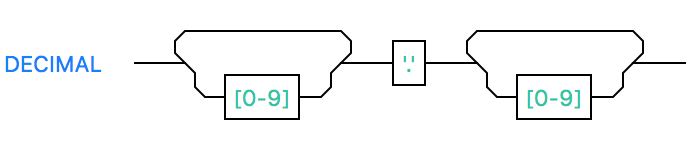

• DECIMAL Top

  Text notation:

  DECIMAL : [0-9]+ '.' [0-9]+ ;

  Visual notation:



• BOOL Top

  Text notation:

  BOOL : 'true' | 'false' ;

  Visual notation:



• MUL_OP Top

  Text notation:

  MUL_OP : '*' ;

  Visual notation:



• DIV_OP Top

  Text notation:

  DIV_OP : '/' ;

  Visual notation:



• ADD_OP Top

  Text notation:

  ADD_OP : '+' ;

  Visual notation:



• SUB_OP Top

  Text notation:

  SUB_OP : '-' ;

  Visual notation:



• EQ_OP Top

  Text notation:

  EQ_OP : '==' | 'is' | 'are' ;

  Visual notation:

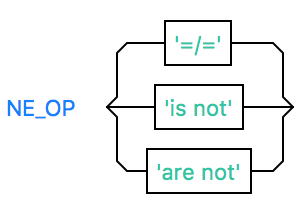

• NE_OP Top

  Text notation:

  NE_OP : '=/=' | 'is not' | 'are not' ;

  Visual notation:



• LT_OP Top

  Text notation:

  LT_OP : '<' ;

  Visual notation:



• LE_OP Top

  Text notation:

  LE_OP : '<=' ;

  Visual notation:



• GT_OP Top

  Text notation:

  GT_OP : '>' ;

  Visual notation:



• GE_OP Top

  Text notation:

  GE_OP : '>=' ;

  Visual notation:

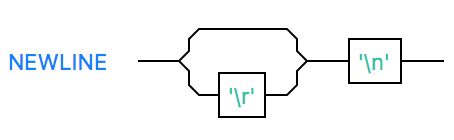

• NEWLINE Top

  Text notation:

  NEWLINE : '\r'? '\n' -> skip ;

  Visual notation:

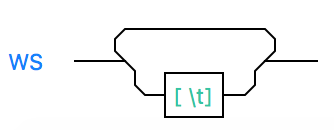

• WS Top

  Text notation:

  WS : [ \t]+ -> skip ;

  Visual notation:



• QUOTE Top

  Text notation:

  QUOTE : '"' ;

  Visual notation:



• STRING Top

  Text notation:

  STRING : QUOTE STRING_CHAR* QUOTE ;

  Visual notation:



• STRING_CHAR Top

  Text notation:

  STRING_CHAR : QUOTE QUOTE | ~('"') ;

  Visual notation:

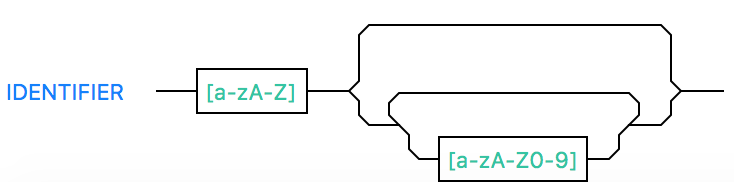

• IDENTIFIER Top

  Text notation:

  IDENTIFIER : [a-zA-Z][a-zA-Z0-9]* ;

  Visual notation:
